Tool-less Hop-Up
Easily adjustable hop-up.KWA’s adjustable hop-up lets you fine-tune backspin for accuracy with any BB weight, without tools.
LM4D RIS PTR – Gas Rifle
$510.00
Gas Blowback Rifle|6mm
- ATF/FTB APPROVED
- Comes with one KWA LM4D AGM 40 round magazine
- KWA Rewards: earn 510 points ($10.20 store credit). How it works
- Pay over time: 4 interest-free payments of $127.50 with Klarna, or Affirm. Details
- Free shipping on orders over $200 (contiguous US).
Klarna and Affirm are subject to approval. See payment terms. A higher initial payment may be required for some consumers. CA resident loans made or arranged pursuant to a California Financing Law license.
For law enforcement and military orders, contact KWA for direct service.
We don't give restock dates. Leave your email and you'll get one email if it's back in stock.
KWA · Professional Training · Gas Blowback Rifle · 6mm

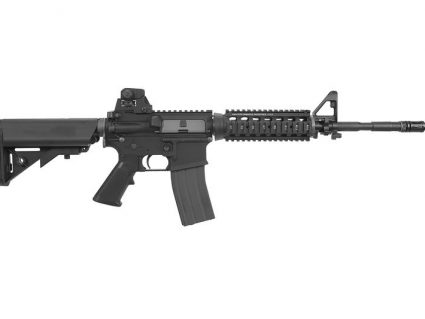

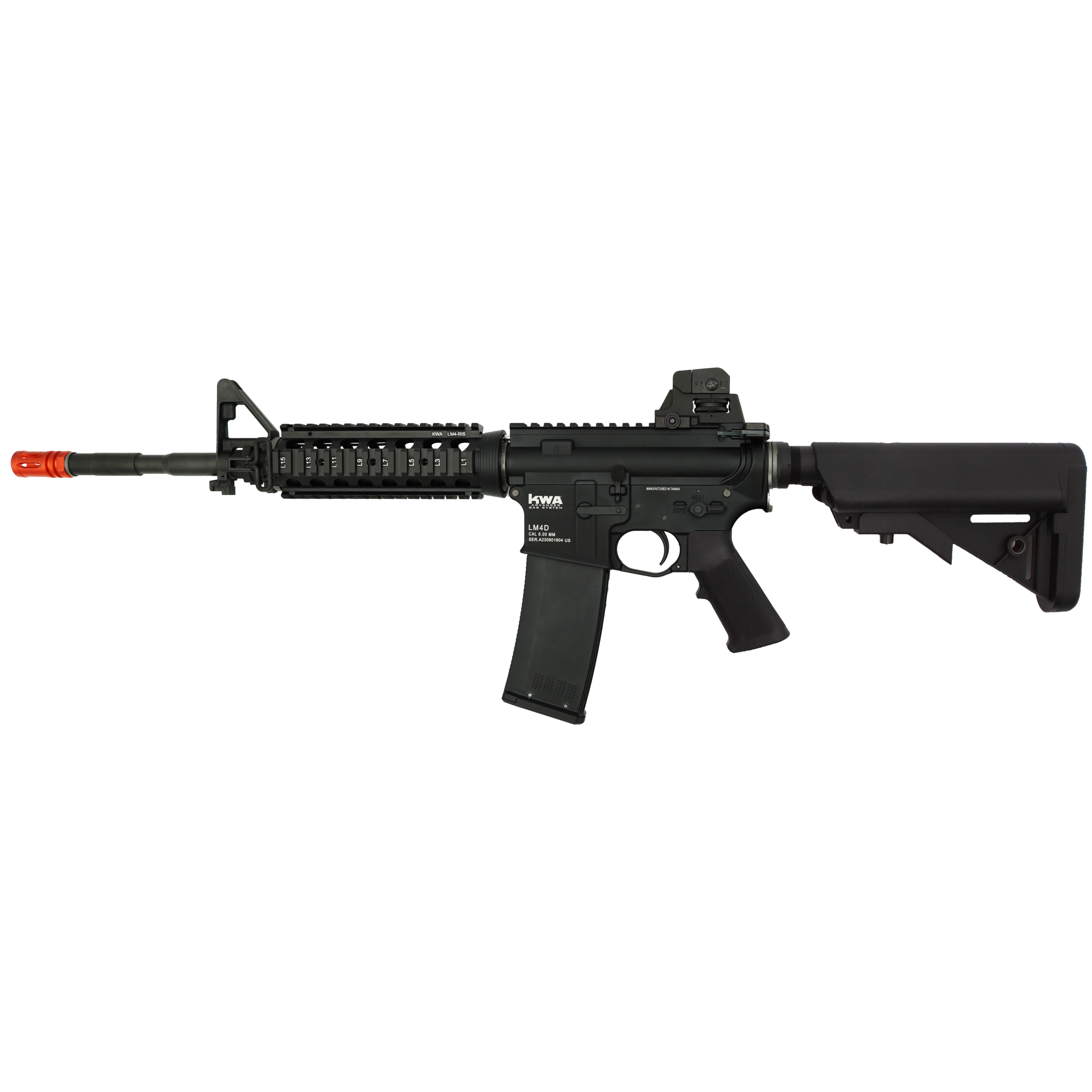

KWA LM4D RIS PTR Gas Rifle
The LM4D with a 14.5-inch barrel and a RIS quad rail
The KWA LM4D RIS PTR is a 6mm gas blowback airsoft rifle in the M4/AR-15 pattern from KWA’s Professional Training line. It runs on green gas, fires semi and full auto at 380–395 FPS from a 40-round LM4D AGM magazine, and has a 14.5-inch outer barrel, a 6.63-inch Picatinny RIS, adjustable fixed sights, an 8 lb trigger break and a KWA Crane stock.
40 rdsAGM magazine
380–395FPS
8 lbTrigger break
14.5″Outer barrel
7.61 lbWeight
Green gasPower
Looking for one today?
The LM4D RIS PTR is out of stock right now. These KWA models are the closest match today.
KWA Rewards
Earn 510 points on this item, worth $10.20 in store credit. New members get 100 points for signing up and 500 bonus points on their first order.
How KWA Rewards worksPay over time
Split it into 4 interest-free payments of $127.50 with Klarna, or pay over time with Affirm. Choose either at checkout.
See payment optionsFree shipping
This item ships free, since orders over $200 ship free in the contiguous US.
Shipping detailsKlarna and Affirm are subject to approval. See payment terms. A higher initial payment may be required for some consumers. CA resident loans made or arranged pursuant to a California Financing Law license.
What is the LM4D RIS PTR?
The LM4D RIS PTR is the 14.5-inch, quad-rail member of KWA’s LM4D gas rifle family. It keeps the classic layout, with a fixed front sight post, a collapsible stock and a 6.63-inch Picatinny RIS, and adds the tool-less hop-up developed for the LM4D to improve range on the field.
An aluminum alloy receiver houses a steel-reinforced bolt carrier for strong, reliable feedback. The forward assist and bolt catch both work, the buffer tube takes mil-spec stocks, and the lower receiver accepts aftermarket AR-15 pistol grips and trigger guards, so you can set it up the way you train.
- 14.5-inch outer barrel
- 6.63-inch Picatinny RIS quad rail
- Fixed front sight post, adjustable fixed sights
- Tool-less hop-up
- 8 lb trigger break
- Working forward assist and bolt catch

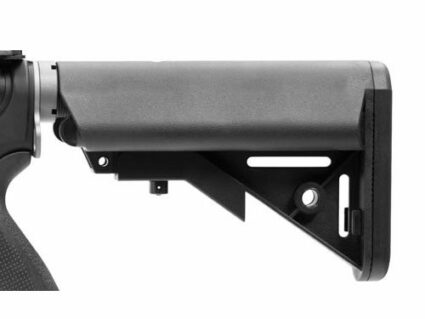

- KWA Crane stock on a mil-spec diameter buffer tube
- Takes mil-spec buttstocks and pistol grips
LM4D RIS PTR Features
RIS Quad Rail

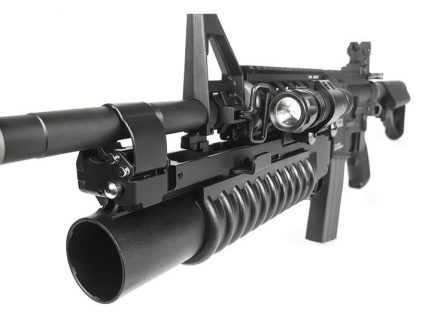

Built tough.The RIS quad rail is large and durable, with plenty of room for lights, lasers, grips and optics.
AGM 40-Round Magazine
With a dry-fire function.Designed for training, the AGM magazine has an updated look and a working dry-fire function. It holds up to 40 rounds and is 25% lighter than the previous version.
8 lb Trigger Break
A pull weight built for trigger-control training.
Working Controls
The forward assist and bolt catch both work, so you can practice the full manual of arms.
Mil-Spec Compatible
Takes mil-spec buttstocks and aftermarket AR-15 pistol grips and trigger guards.
Gas magazine basics
How to prime a gas magazine. Priming reduces air pockets for more consistent fills.
LM4D RIS PTR Specifications
| Performance | |
|---|---|
| Power system | Gas blowback |
| Gas | Green gas |
| Velocity | 380–395 FPS |
| Rate of fire | 12.6+ rounds per second |
| Firing modes | Safe, semi-auto, full auto |
| Magazine | LM4D AGM, 40 rounds |
| Hop-up | Adjustable, tool-less |
| Trigger | 8 lb break |
| Dimensions | |
| Length | 31.5 in retracted, 32.39 in extended |
| Outer barrel | 14.5 in |
| Inner barrel | 14.57 in |
| Weight | 7.61 lb |
| Build | |
| Rail | 6.63-inch Picatinny RIS |
| Stock | KWA Crane stock, retractable |
| Muzzle | A2 birdcage |
| Sights | Fixed front sight post, adjustable fixed sights |
| Compatibility | Mil-spec buttstocks and pistol grips |
| Controls | Working forward assist and bolt catch |
| Collection | Professional Training |
Which magazines fit? See the KWA magazine compatibility chart.
What comes with the LM4D RIS PTR
In the box
- LM4D RIS PTR gas blowback rifle
- One KWA LM4D AGM 40-round magazine
You will also need
- Green gas
- 6mm airsoft BBs
- Silicone oil for magazine seals
- Full-seal eye protection
Popular add-ons
How the LM4D RIS PTR works
Gas blowback rifles reward a little know-how. Here is what to expect.
Gas blowback, explained
Green gas is stored in the magazine. Each trigger pull releases gas that fires the BB and drives the bolt back, which gives you bolt movement and recoil you can feel.
Because the gas lives in the magazine, healthy magazines mean a healthy rifle. Keep their seals oiled and fill them correctly.
Filling an LM4 magazine
Inspect the magazine first. If gas is still inside, release it with the valve at the top rear, and keep clear of the escaping gas.
- Hold the magazine upside down (floor plate up) and the green gas can upside down and vertical, with the fill needle pointing down.
- Fill for about 30–40 seconds. Listen for a faint hiss while it fills.
- Prime the magazine now and then by pressing the release valve as you first insert the fill needle. This reduces air pockets.
- Magazines get cold after shooting. A pouch or pocket helps them return to room temperature.
Which magazines to use
It comes with one LM4D AGM 40-round magazine, which has a working dry-fire function for training. KWA also pairs this rifle with the LM4 PTR Series 40-round magazine.
The 8 lb trigger
The trigger breaks at about 8 lb, a pull weight that makes the LM4D RIS PTR a strong choice for training trigger control.
How many shots per can?
KWA ran its own test at 78°F to see how many rounds one can of KWA green gas gives a gas rifle. Each magazine was filled for 30 seconds and loaded with 40 BBs, then emptied and refilled without warming time until the can could no longer give a 30-second fill.
Results: 920 rounds from an LM4C gas rifle running four LM4 magazines, and 840 rounds from an AKG KCR running five AKG magazines. Treat it as a guide. Temperature and fill time change the count.
Hop-up, explained
Hop-up puts backspin on the BB so it lifts and flies flatter and farther. Too little and BBs drop early. Too much and they climb.
- Start with the hop-up at its lowest setting.
- Fire a few shots at a target at your usual distance.
- Add a little hop at a time until BBs fly flat before they drop.
- Back it off if BBs start to rise. Re-check whenever you change BB weight.
LM4D RIS PTR vs LM4D vs LM4D M-LOK
Three LM4D gas rifles with 40-round magazines, an 8 lb trigger and a tool-less hop-up.
| LM4D RIS PTR | LM4D 10.5″ | LM4D M-LOK | |
|---|---|---|---|
| Outer barrel | 14.5 in | 10.5 in | 10.5 in |
| Rail | 6.63-inch Picatinny RIS | 9.5-inch free-float quad Picatinny | 9.5-inch M-LOK |
| Sights | Fixed front post, adjustable fixed sights | PTS flip-up, front and rear | PTS flip-up, front and rear |
| Stock | KWA Crane stock | Minimalist buttstock, QD sockets | Minimalist buttstock, QD sockets |
| Velocity | 380–395 FPS | 380–400 FPS | 380–400 FPS |
| Weight | 7.61 lb | 6.5 lb | 6.5 lb |
LM4D RIS PTR care and parts
- Inspect magazines before each use. Make sure feed lips are intact and free of cracks.
- Put a drop of silicone oil on the top of the magazine main seal, just behind the feed lips. It helps the magazine seal against the bolt carrier.
- Do not shake the gas can before filling, and avoid dropping magazines.
- Store green gas magazines in a cool, dry place and never in direct sunlight.
- Replace worn seals and O-rings as needed.
Common maintenance parts for the LM4D RIS PTR: LM4 bolt (#2), bolt base (#60), bolt base return spring (#62), bolt base O-rings (#190 small, #191 large), magazine nozzle seal (#236), release valve (#240/246), charging valve (#245) and magazine lip (#230). See the Common Maintenance Parts tab on this page for part numbers and SKUs.
Manuals and diagrams are in the Manuals & Diagrams library.
LM4D RIS PTR FAQ
What is the KWA LM4D RIS PTR?
A 6mm gas blowback airsoft rifle from KWA’s Professional Training line in the M4/AR-15 pattern, with a 14.5-inch barrel, a 6.63-inch Picatinny RIS, an 8 lb trigger and a tool-less hop-up.
How many FPS does the LM4D RIS PTR shoot?
KWA lists it at 380–395 FPS. Fields set velocity limits, often lower indoors than outdoors, so check yours and confirm at chrono.
Does it use green gas or CO2?
Green gas.
Which magazines fit the LM4D RIS PTR?
It comes with one LM4D AGM 40-round magazine with a dry-fire function. KWA also pairs it with the LM4 PTR Series 40-round magazine.
What is the difference between the LM4D RIS PTR and the LM4D 10.5"?
The RIS PTR has a 14.5-inch barrel, a 6.63-inch RIS, fixed sights and a KWA Crane stock. The LM4D 10.5″ has a 10.5-inch barrel, a 9.5-inch rail and PTS flip-up sights.
Can I change the stock and grip?
Yes. KWA lists it as compatible with mil-spec buttstocks and pistol grips, and the lower takes aftermarket AR-15 pistol grips and trigger guards.
How many shots do I get from a can of green gas?
In KWA’s own test at 78°F, one can of KWA green gas gave 920 rounds in an LM4C gas rifle and 840 rounds in an AKG KCR. Temperature and fill time change the count.
Can I pay for the LM4D RIS PTR Gas Rifle over time?
Yes. Choose Klarna at checkout to split it into 4 interest-free payments, or Affirm to pay over time. Both are subject to approval. See Payment Options.
Do I earn KWA Rewards points on the LM4D RIS PTR Gas Rifle?
Yes. KWA Rewards members earn 1 point for every $1 on orders of $50 or more, so the LM4D RIS PTR Gas Rifle earns about 510 points, worth $10.20 in store credit (50 points = $1). See KWA Rewards.
Is the LM4D RIS PTR covered by a warranty?
Every KWA gun is backed by KWA, with warranty support and in-house service in California. Protection Plus adds extended warranty coverage and a repair plan with no repair fee, discounted parts and free return shipping. See the Protection Plus page for plan details.
KWA Airsoft
Built to Run, Backed by KWA
KWA warrantyEvery KWA gun is backed by KWA.
Protection PlusExtended warranty coverage plus a repair plan with no repair fee.
In-house serviceRepairs and support from KWA in California.
Parts and manualsOrder parts by part number and download diagrams.
| Weight | 9.2 lbs |
|---|---|
| Dimensions | 41 × 10 × 4 in |
| Collection | Professional Training |
| Firing Modes | Full Auto, Semi |
| Color | Black |
| Mag Type | Gas, M4/AR15 |
| Rail Style | Picatinny |
| Stock Type | Retractable |
| Power System | Gas Blow Back |
| Platform | Carbine, Rifle |
Common Maintenance Parts
| Part # | SKU | Description |
| 2 | 199-3001-0002 | LM4 Bolt |
| 60 | 199-3001-0060 | LM4 Bolt Base |
| 62 | 199-9999-D081 | LM4 Bolt Base Return Spring |
| 190 | 199-9999-E022 | LM4 Bolt Base O Ring Small |
| 191 | 199-3001-0191 | LM4 Bolt Base O Ring Large |
| 236 | 199-3001-MG236 | LM4 Magazine Nozzle Seal |
| 240,246 | 199-9999-I037 | LM4 Release Valve |
| 245 | 199-9999-I008 | LM4 Charging Valve |
| 230 | 199-3001-MG230 | LM4 Magazine Lip |
Specifications
- Length (Retracted): 31.50“
- Length (Extended): 32.39“
- Height: NA“
- Outer Barrel Length: 14.50“
- Inner Barrel Length: 14.57“
- Magazine Capacity: 40
- Weight: 7.61
- Gearbox: NA
- Electronic Trigger Ready: NA
- Rate of Fire: 12.6+
- Velocity: 380-395 FPS
- Power Source: NA
- Operation: GREEN GAS
- Adjustable Hop Up: YES
- FPS Range: 380-395 FPS
- Firing Modes: SAFE, SEMI AUTO, FULL AUTO
- Motor Type: NA
- Stock: KWA CRANE STOCK
- Rail Type: 6.63" PICATINNY RIS
- Muzzle Device: A2 BIRDCAGE
- Compatible Magazines & Additional Features: COMPATIBLE WITH MIL SPEC BUTT STOCKS AND PISTOL GRIPS, ADJUSTABLE FIXED SIGHTS
